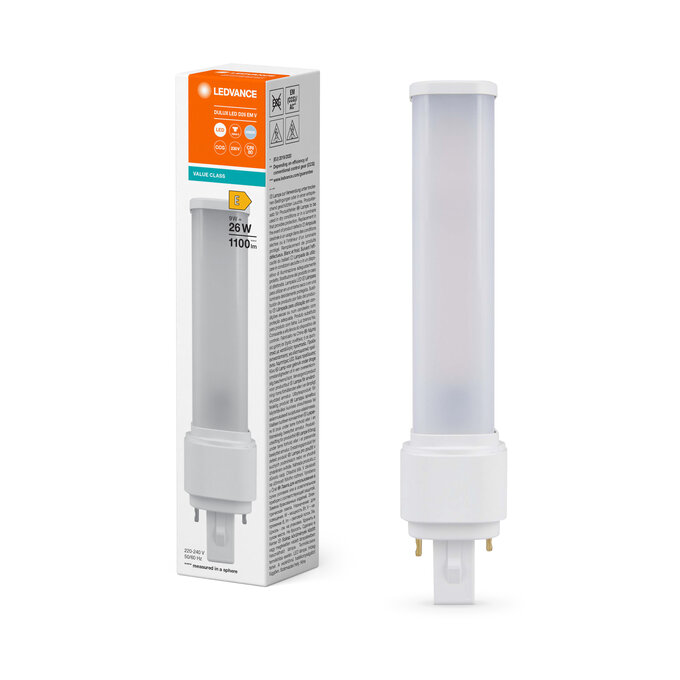

DULUX LED D18 EM & AC MAINS V 7W 840 G24D-2

Product benefits Easy installation Low energy consumption Easy relamping thanks to compact design Operation directly on 230 V AC mains possible Areas of application General illumination within ambient temperatures from -20… 45 °C Supermarkets and department stores Walkways and corridors Hotels, restaurants Product features LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains Lifetime up to 30,000 h Rotatable base around its longitudinal axis (± 90°) Single-ended two-pin plug-in G24d base Type of protection: IP20 Mercury-free lamps Safety advice Not suitable for tandem operation. The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation. All electrical connections must be made by a qualified person. Do not touch the lamp with bare fingers. Must not be used if outer bulb is defective. Lamp not suitable for emergency operation. Electrical data Nominal wattage 7 W Construction wattage 7.00 W Nominal voltage 220…240 V Operating mode CCG, AC Mains Claimed equiv. conventional lamp power 18 W Nominal current 32 mA Type of current AC Inrush current 14.4 A Suitable for DC input Yes Input voltage DC 186…260 V 1) Operating frequency 50/60 Hz Mains frequency 50/60 Hz Max. lamp number on MCB B10 A 41 Max. lamp number on MCB B10 A – CCG without compensation 125 Max. lamp number on MCB B10 A – CCG with compensation 9 Max. lamp number on MCB B16 A 52 Max. lamp number on MCB B16 A – CCG without compensation 176 Max. lamp number on MCB B16 A – CCG with compensation 11 Total harmonic distortion ≤ 30 % Power factor λ > 0.90 1) Permitted voltage range Photometrical data Luminous flux 770 lm Nominal useful luminous flux 90° 770 lm Luminous efficacy 110 lm/W Lumen main.fact.at end of nom.life time 0.70 Light color (designation) Cool White Color temperature 4000 K Color rendering index Ra 80 Light color 840 Standard deviation of color matching ≤6 sdcm Flickering metric (Pst LM) 1.0 Stroboscope effect metric (SVM) 0.4 Light technical data Beam angle 120 ° Warm-up time (60 %) ‹ 0.50 s Starting time < 0.5 s Dimensions & Weight Overall length 148.00 mm Diameter 35.00 mm Tube diameter 27,0 mm Maximum diameter 35 mm Product weight 54.00 g Temperatures & operating conditions Ambient temperature range -20… 45 °C 1) Maximum temperature at tc test point 73 °C 1) Temperature surrounding the lamp – for enclosed luminaires: temperature inside of the luminaire Lifespan Lifespan L70/B50 at 25 °C 30000 h Number of switching cycles 200000 Lumen maintenance at end of service lifetime 0.70 Rated lamp survival factor at 6,000 h ≥ 0.90 Additional product data Base (standard designation) G24d-2 Mercury content 0.0 mg Mercury-free Yes Design / version Frosted Capabilities Dimmable No Certificates & Standards Energy efficiency class E 1) Energy consumption 7.00 kWh/1000h Type of protection IP20 Standards CE, EAC, UKCA Photobiological safety group acc. to EN62778 RG0 1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency) Country-specific categorizations Order reference DULUX LED D18 E SKU: 1209693 Categories: Bulbs, Light Sources Tags: 4000k, G24, led, NATURAL . NEUTRAL, office lighting, recessed Brand: LEDVANCE
