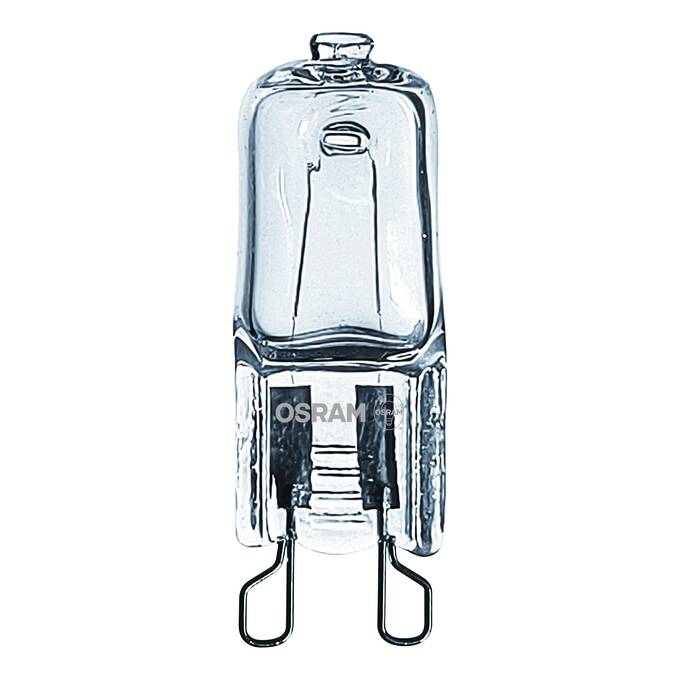

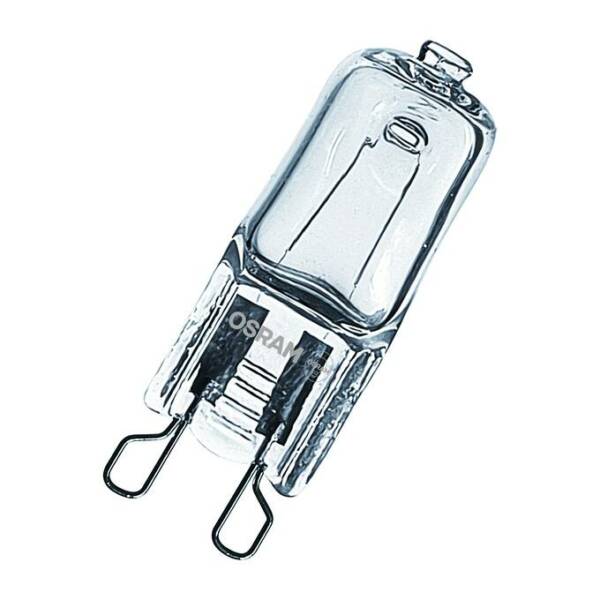

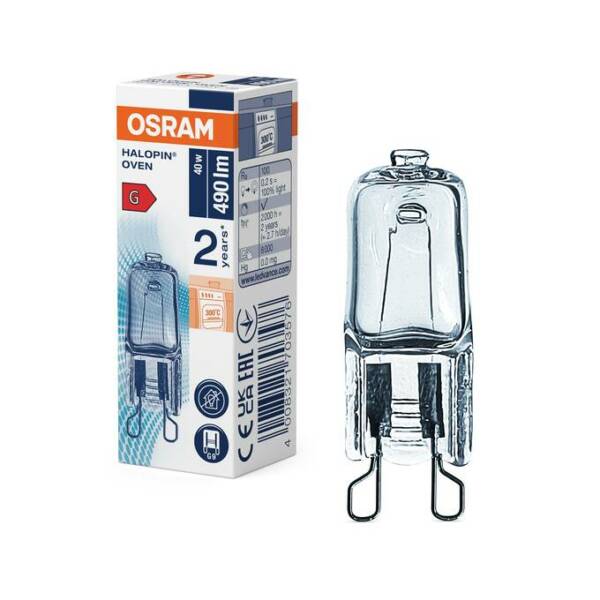

HALOPIN OVEN 40 W 230 V G9

OVEN HALOGEN LAMP G9 230V Heat-resistant above 300 °C EAN: 4008321703576 Electrical data Nominal wattage 40 W Construction wattage 40.00 W Nominal voltage 230 V Operating mode 230V AC Mains Nominal current 174 mA Type of current AC Operating frequency 50/60 Hz Mains frequency 50/60 Hz Power factor λ 1.00 Photometrical data Luminous flux 490 lm Luminous efficacy 12 lm/W Lumen main.fact.at end of nom.life time 0.85 Light color (designation) Warm White Color temperature 2700 K Color rendering index Ra 100 Light color 1027 Standard deviation of color matching ≤6 sdcm UV protection Yes Light technical data Starting time < 0.2 s Dimensions & Weight Overall length 41.00 mm Light center length (LCL) 22,0 mm Diameter 13.00 mm Maximum diameter 13 mm Product weight 3.2 g Temperatures & operating conditions Ambient temperature range -20… 300 °C Maximum temperature at tc test point 300 °C Lifespan Lifespan L70/B50 at 25 °C 2000 h Number of switching cycles 8000 Additional product data Base (standard designation) G9 Mercury content 0.0 mg Mercury-free Yes Design / version Tube Product remark Heat-resistant above 300 °C, Lamp suitable for oven with high temperature self cleaning (Lamps must be switched off! Max. ambient temperature 450 °C), For use in shielded luminaires only Capabilities Dimmable Yes 1) Burning position Any 1) Check dimmer compatibility at ledvance.com/compatibility Certificates & Standards Energy efficiency class G 1) Energy consumption 40.00 kWh/1000h Standards CE, EAC, UKCA 1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency) Country-specific categorizations ILCOS HSGST/C/UB-40-230-G9-22 Order reference 66740 OVEN LOGISTICAL DATA Temperature range at storage -20… 85 °C Energy labelling regulation data acc EU 2019/2015 Lighting technology used HL Non-directional or directional NDLS Mains or non-mains MLS Light source cap-type (or other electric interface) G9 Connected light source (CLS) No Color-tuneable light source No Envelope No High luminance light source No Anti-glare shield No Correlated colour temperature type SINGLE_VALUE Standby power 0.0 W Claim of equivalent power No Length 41.00 mm Height 13.00 mm Width 13.00 mm Chromaticity coordinate x 0.460 Chromaticity coordinate y 0.410 R9 Colour rendering index 100 Beam angle correspondence SPHERE_360 Survival factor 0.85 EPREL ID 931185,2194498 Model number AC35348,AC68761 SKU: 1209126 Categories: Bulbs, Light Sources Tags: 230V, 40W, g9, Halogen, OVEN LAMP Brand: LEDVANCE
