Multifunctional Mirror Dew Point Instrument DP29-60 dew point humidity meter

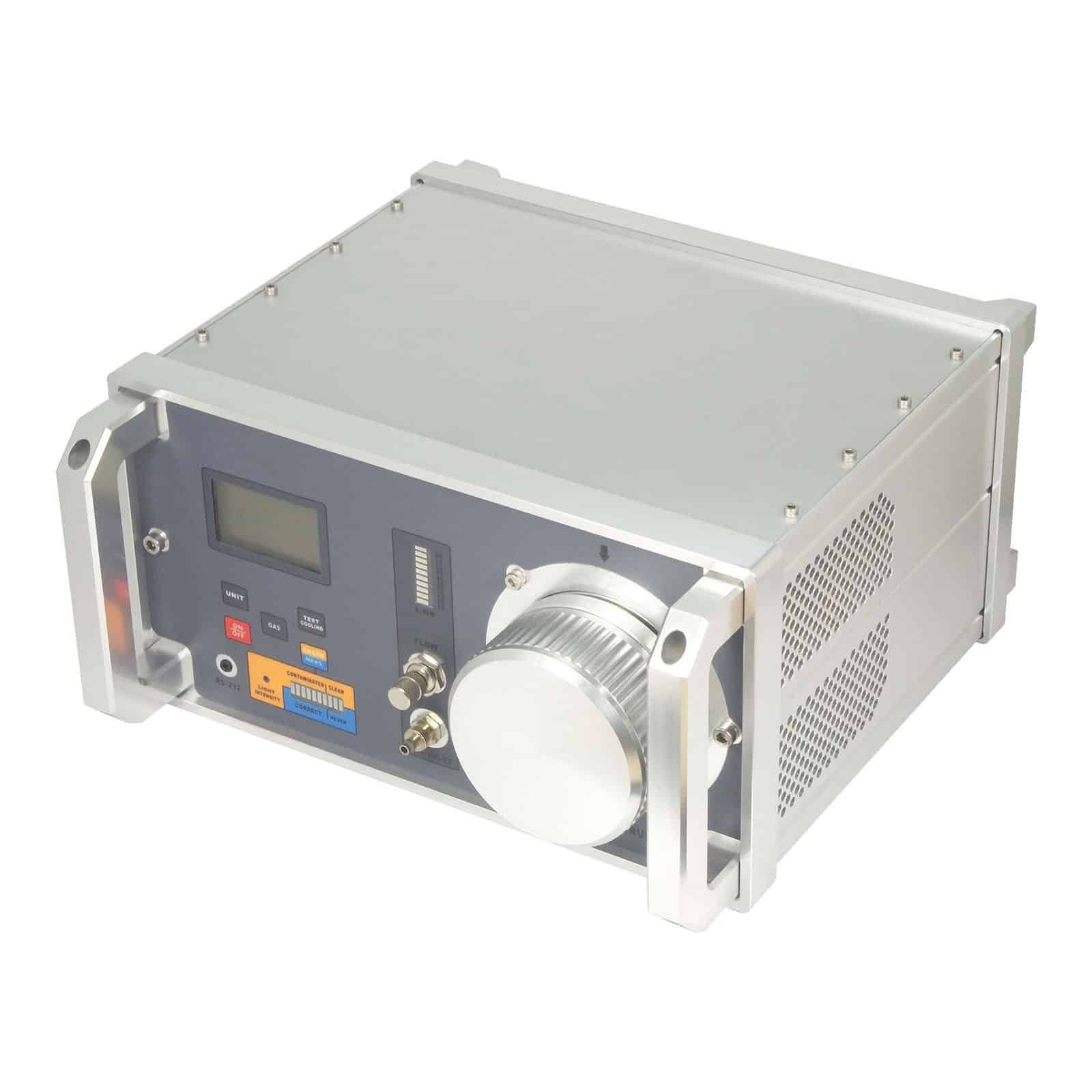

Multifunctional Mirror Dew Point Instrument DP29-60 dew point humidity meter   DP29 is a multifunctional, portable dew point humidity meter , especially designed for field use. Typically apply to dew point measurement of SF6gas.   Features * Based on the principle of chilled mirror. * Accurate measurement is guaranteed. * The system is stable, No need to repeatedly calibrated. * A built in electronic sample gas flow monitor. * Use RS-232 data output to connect with PC. Applications   DP29-60is a standard type. It applies to standard reference for laboratory calibration, moisture control for ceramic firing furnaces, humidity control for thermo-hygrostat chamber.   Specifications Model DP29-40 DP29-60 DP29-SF6 — Range Under 0ºC -40ºC -60ºC -60ºC — Under 10ºC -40ºC -60ºC -60ºC — Under 20ºC -35ºC -55ºC -55ºC — Under 35ºC -30ºC -45ºC -45ºC — Accuracy <<±0.2ºC,±1Digit Repeatability <<±0.1ºC,±1Digit Resolution 0.1ºC Defaulit Output USB Optional Output ±10mv/ºC(0ºC=0mv)or 4-20mA Measurnment Principle Chilled Mirror Refrigeration Semiconductor Refrigeration Inlet Flow 15~60L/h,Generally 30~40L/h Inlet Pressure 10mbar~10bar(1kpa~1Mpa) Response Time 2ºC/Second(Maximum) Voltage 220V AC±10%   50/60HZ Pump Optional Accessory Mirror Check Press the Conversion Key to mirror check mode(‘CH’ on the display),and check manually Instrument Check Press the Test Cooling Key,open the measurment probe,and check manually at mirror check mode Consumption About 160 Watts Temperature 0~50ºC Humidity <90%,No Condensation Dimension 342(W)x140(H)X326(D) mm Weight About 7.22kg Standard accessories Main Unit Inlet Tube(FEP,3m),With Connector Instruction Manual Packaging Box Optional Accessories RS-232C Data Cable with Software Price Terms︰ FOB Shenzhen Payment Terms︰ TT/Western Union/Paypal Packing︰ Export carton Lead Time︰ 5 days Product Image
