Launch X431 SmartLink C 2.0 Heavy duty Truck New Energy Code Reader Diagnostic

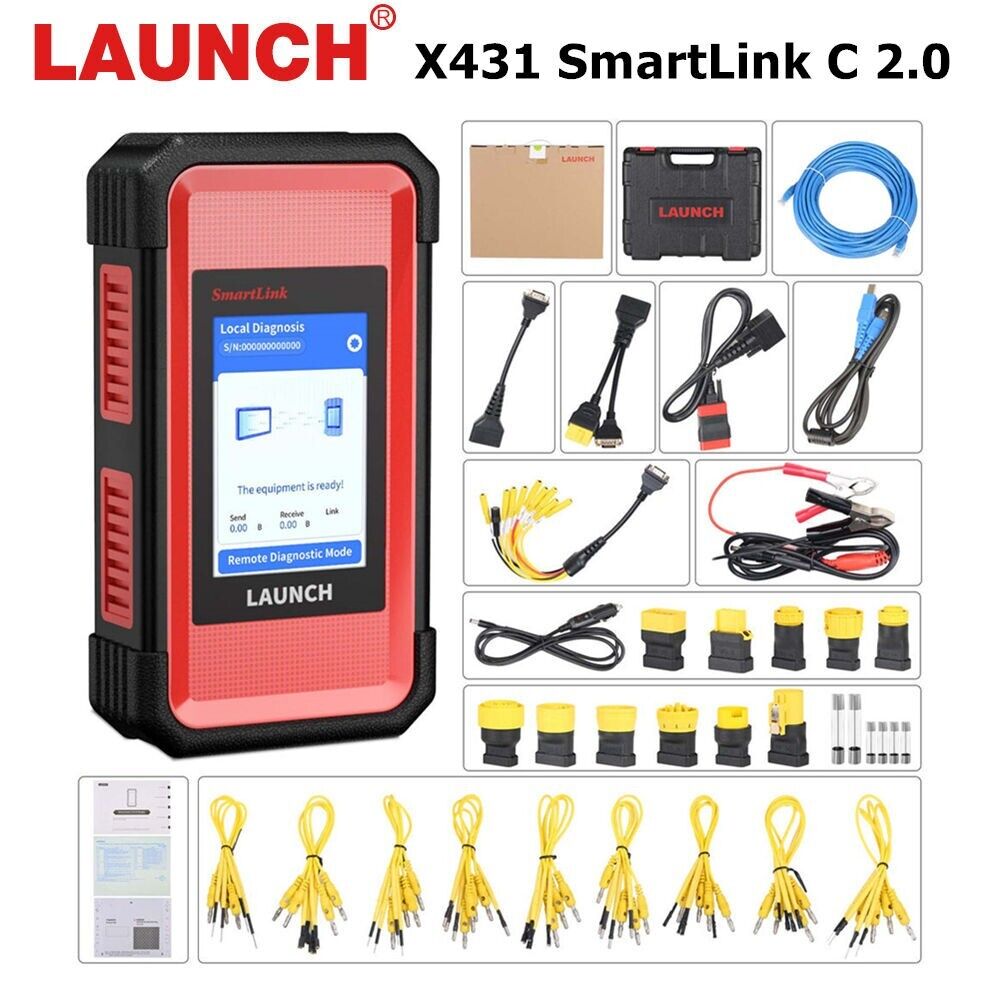

Launch X431 SmartLink C 2.0 Heavy duty Truck New Energy Code Reader Diagnostic Launch X431 SmartLink C 2.0 Heavy-duty Truck Module for Commercial Vehicles/ Passenger/ New Energy Cars Work with X-431 PRO3/ V /PRO3S Launch X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module developed by Launch Company based on Linux system, dual processor Cortex-A7 Cortex-M7, 8G storage, 256M storage, 320*480 resolution. It supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with X-431 PRO3S and PRO5 series. It also support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test. Covering for Cummins, for Bosch, for Weichai, for Shangchai, for Yuchai, for Xichai, for Chaochai, for Yangchai, for Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software. Features: Work as a VCI (Vehicle Communication Interface) Work as a Local J2534 PassThru Device Work as a Remote J2534 PassThru Device Note: LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works with LAUNCH Tablet of X431 V , X431 PRO3, X-431 PRO3S Series. The SmartLink C system consists of the following two parts: 1.SmartLink Service Platform — For binding the SmartLink C dongles and posting the remote repair orders (Note: Orders can be submitted only after the SmartLink C dongle is successfully bound) 2. SmartLink C Dongle — Connects with vehicle’s Data Link Connector (DLC) to obtain vehicle information before submitting repair orders. Package Includes: 1pc x Overseas super remote diagnosis box V2.0 (maintenance end, 98934, no label) 1pc x HD15F to OBDII 16 male integrated test connector, RoHS 1pc x DB15F to HD15F test main line (without DC), L=1000mm, RoHS 1pc x Double clamp power cord (English, without LAUNCH), RoHS 1pc x Cigarette lighter cable (English, no LAUNCH), RoHS 4pcs x Fuse, AC250V/5A, φ5*20mm ROHS 2pcs x Fuse, AC250V/5A, φ6*30mm ROHS 1pc x X431 PAD4HD USB Type A to Type B Cable, RoHS 1pc x Category 6 Gigabit Network Cable (Blue) 15m, RoHS 1pc x SmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS 1pc x X431 PAD4HDB15M-For CAT-9/CAT 9PIN integrated diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-For VOLVO-8/Volvo 8PIN integrated diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-16 Integral diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-Type II OBD-9 Integral Diagnostic Connector, RoHS 1pc x X431 PAD4HDB15M-6 Integral diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-For JUMPER-10 heavy truck jumper 10PIN diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-For IVECO-30/IVECO 30PIN Integrated Diagnostic Connector, RoHS 1pc x X431 PAD4HDB15M-For IVECO-38/IVECO 38PIN Integrated Diagnostic Connector, RoHS 1pc x X431 PAD4HDB15M-For MAN-12/Man 12PIN integrated diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-For BENZ-14/Benz 14PIN integrated diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-For MAN-37/Man 37PIN integrated diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-For RENAULT-12/Reynolds 12PIN integrated diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-For MITSUBISHI-12 16/FUSO 12 16PIN linear diagnostic connector, RoHS 1pc x X431 PAD4HDB15M-For HYUNDAI-16/Hyundai truck 16PIN linear diagnostic connector, RoHS 4pcs x X-431 PAD IV electric control adapter cable 1, RoHS 4pcs x X-431 PAD IV electric control adapter cable 2, RoHS 4pcs x X-431 PAD IV electric control adapter cable 3, RoHS 4pcs x X-431 PAD IV electric control adapter cable 4, RoHS 4pcs x X-431 PAD IV electric control adapter cable 5, RoHS 4pcs x X-431 PAD IV electric control adapter cable 6, RoHS 4pcs x X-431 PAD IV electric control adapter cable 7, RoHS 4pcs x X-431 PAD IV electric control adapter cable 8, RoHS 4pcs x X-431 PAD IV electric control adapter cable 9, RoHS 1pc xUniversal password envelope (without LAUNCH), RoHS 1pc xSmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
